  Custom optical glass lens Current Location: Home > Products > Custom optical glass lens
46mm quartz glass lens plano-convex lens
46mm quartz glass lens plano-convex lens

Product Description

46mm quartz glass lens plano-convex lens

Product Description

Model

KL-D46-8-1pt

Structure

Plano convex

Material

Quartz

 penetration rate

80% for UV 220nm

Application

for medicallighting

Surface Accuracy

λ/4

Surface Quality

40-20

Dimension Tolerance

+0.0/-0.1mm

Thickness Tolerance

±0.1mm

Focal Length Tolerance

±1 %

Centration

<3 arc min

Clear Aperture

>90%

Bevelling

<0.2×45°

Coating

Customers Design

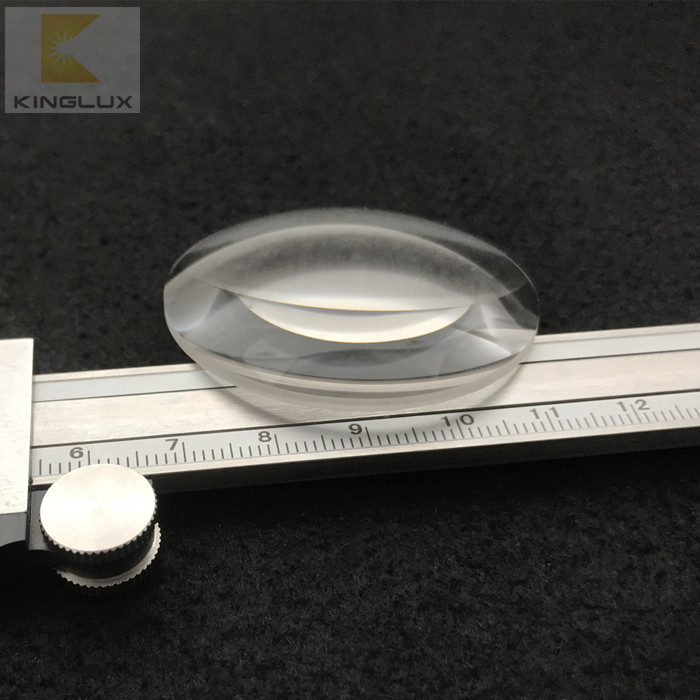

Product Pics



Lens drawing



Customized service

It also can made byBK7, B270,Fused silica, CaF2, BaF2,

ZnSe, Germanium, Silicon



  Packaging & Shipping

 Individual package & Express shipping within 10 days

Payment: 50% T/T as deposit, 50% T/T before lading



Our Services

1. provide LED optical solution,solve the problem of led light distribution.
2. design and production of glass lens according to the customer's samples or requirements
3.Have our own CNC machining center can make glass lens sample within 7 days.



Company Information

   WUXI KINGLUX GLASS LENS CO.,LIMITED is a professional research, development, production and marketing of glass lenses optical components manufacturer, we focus on optical field for 30 years. The optical element has spherical lens, aspherical lens, cylindrical lens, free-form surface lens, prism, cone mirror, light pipe, window glass sheet. Shape of optical element has Plano-convex, biconvex lens, Plano-concave, biconcave, meniscus lens, magnifying glass, flat tablets. Raw materials are high-quality optical glass such as borosilicate glass 3.3, B270, BK7 ,Quartz etc., mainly used in LED lighting, medical equipment, optical instruments, laser, infrared and other products.
